Fabric Pipe Expansion Joints

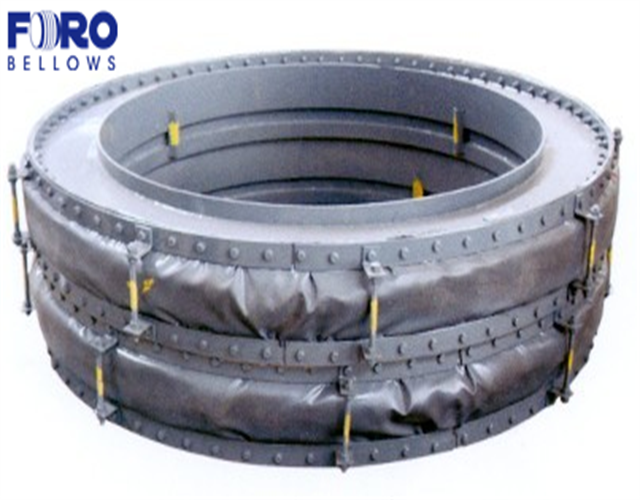

Fabric Pipe Expansion Joints Introduction

Fabric Expansion Joints mainly used in gas turbine and other ship engine exhaust ducts, power plant pulverized coal ducts, ash ducts, air ducts, and power plant desulfurization tower ducts. Since the non-metallic fabric compensator is welded with a metal skeleton inside and wrapped with silicone rubber coated glass cloth, fluorine rubber coated glass cloth, polytetrafluoroethylene pressed glass cloth, EPDM coated glass cloth, nitrile rubber coated glass cloth, polytetrafluoroethylene film and other single-layer or multi-layer composite materials, ceramic fiber fireproof cloth, aluminum silicate wool, stainless steel wire fiber cloth, glass fiber cloth and other composite materials outside, it not only has the compensation effect of metal compensators and high temperature resistance, high wear resistance, and can be used near boiler vents, coal smoke exhaust duct ports and boilers. It is installed between furnaces and can fully absorb pipeline vibration and thermal expansion and contraction displacement by its own soft characteristics. Since the outside is wrapped with special high-temperature resistant fireproof cloth, it can effectively prevent the pipeline from being corroded by high-temperature boiler exhaust gas. Non-metallic fabric compensators are installed in heat exchange pipes and heating pipes. It can not only absorb pipeline displacement and vibration, but also ensure efficient recycling of pipeline heat. Non-metallic fabric compensators are installed in particle transportation pipelines such as cement plants. It can not only compensate for pipeline displacement and absorb vibration, but also effectively prevent the friction of particles on the compensator itself because the outer layer contains highly wear-resistant EPDM coated glass cloth. Non-metallic fabric compensators are the best choice for compensating displacement, reducing vibration, reducing noise and absorbing thrust.

Fabric Pipe Expansion Joints Specification

Technical parameters: circular diameter DN200-DN700, design pressure: ≤±300Kpa, design temperature: ≤1300℃

Connection type: welding and flange connection, compensation: axial ±200mm lateral ±50mm

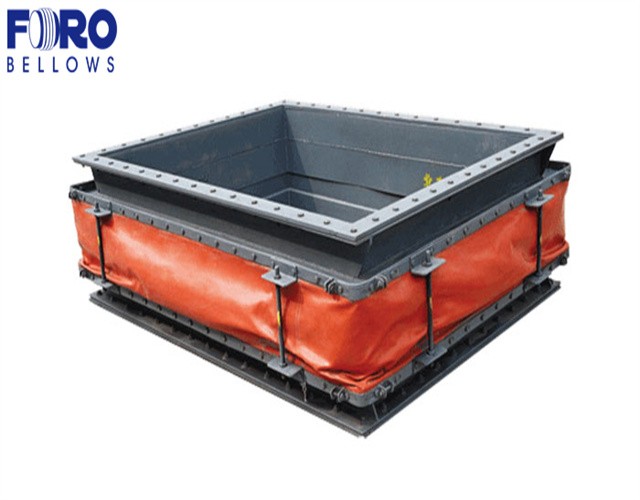

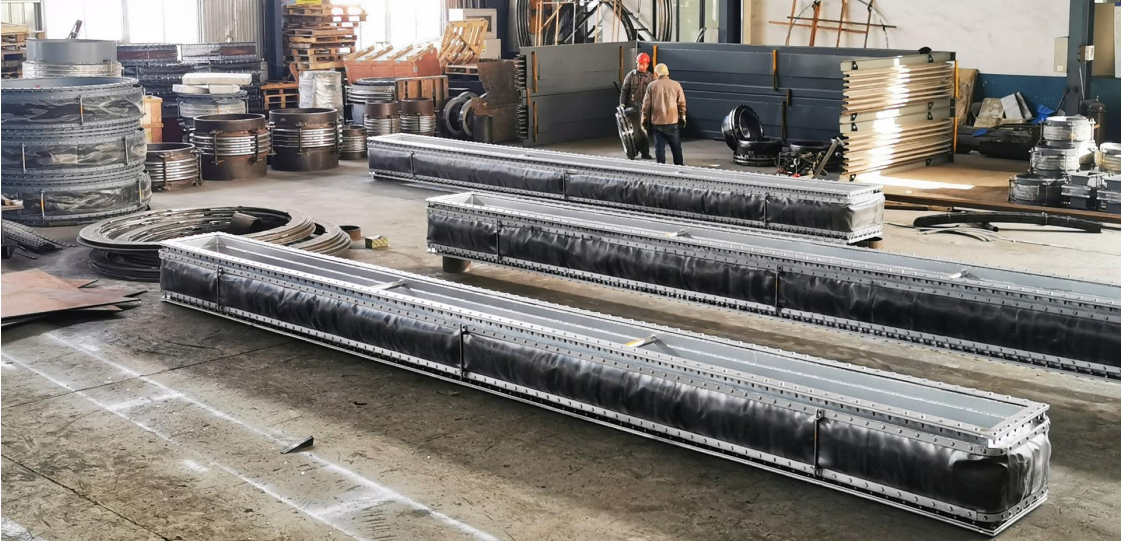

Rectangle: any size
