High Pressure Pipeline Expansion Joints

High-pressure pipeline expansion joints are an important device that can balance the pressure inside and outside the pipeline and solve the problem of pipeline deformation.

In the high-pressure pipeline system, the expansion joint has the following functions:

1. Improve the pressure resistance of the pipeline

The working pressure of the high-pressure pipeline system is often very high. If there is no expansion joint, the bearing capacity of the pipeline will be greatly limited.

The elastic characteristics of the expansion joint can effectively enhance the pressure resistance of the pipeline, reduce the risk of pipeline explosion,

and ensure the safety of pipeline operation.

2. Enhance the reliability of the pipeline

The expansion joint in the high-pressure pipeline can freely expand, rotate and deform, so that the pipeline can adapt to changes in the external environment

such as temperature changes and workload changes. By alleviating deformation problems such as expansion, contraction and vibration of the pipeline,

the expansion joint can effectively reduce the risk of fatigue fracture and leakage of the pipeline, and improve the reliability and durability of the pipeline.

3. Reduce pipeline maintenance costs

The maintenance cost of high-pressure pipeline systems is very expensive, and expansion joints can effectively reduce pipeline maintenance costs.

By alleviating the deformation problem of the pipeline, the expansion joint can reduce the friction between the pipeline and the pipeline support,

reduce the wear of the pipeline support, and extend the service life of the pipeline support. In addition, the maintenance cost of the expansion joint itself is also very low,

and basically no maintenance is required.

4. Improve the installation efficiency of pipelines

The installation of high-pressure pipeline systems is often very complicated, and it is necessary to consider issues such as pipeline layout, interfaces, and brackets.

The expansion joint can act as a "joint" during the pipeline installation process, simplifying the layout and interfaces of the pipeline and improving the installation efficiency

of the pipeline.

So the high-pressure pipeline expansion joint is a very important pipeline equipment, which can not only ensure the safe operation of the pipeline, improve the reliability

and durability of the pipeline, but also reduce the maintenance cost of the pipeline and improve the installation efficiency of the pipeline. Therefore,

in the high-pressure pipeline system, the application of expansion joints is indispensable.

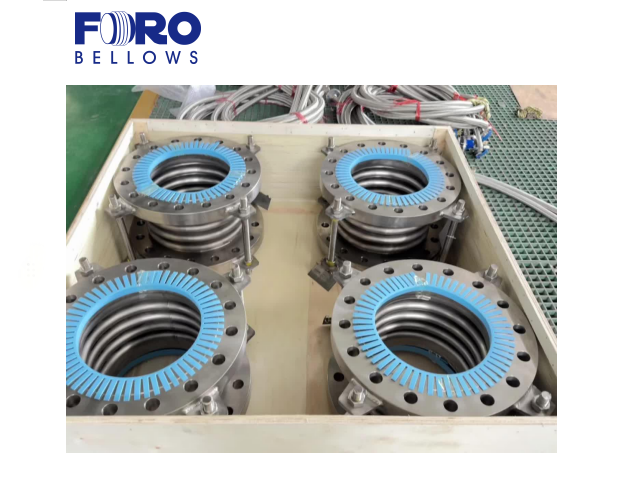

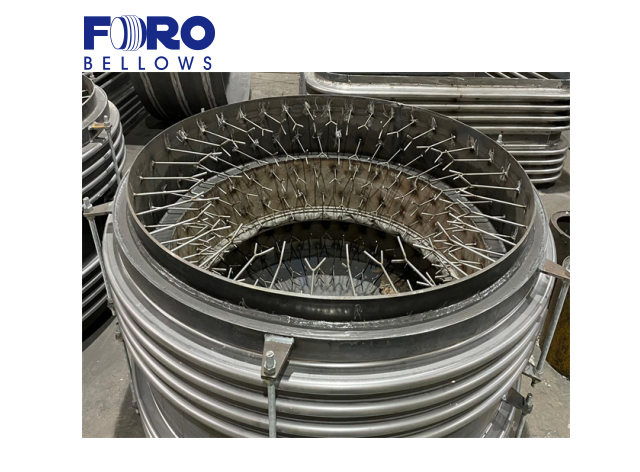

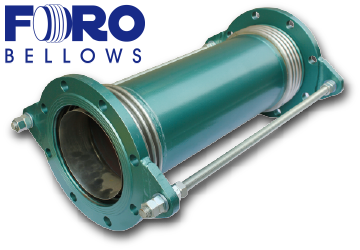

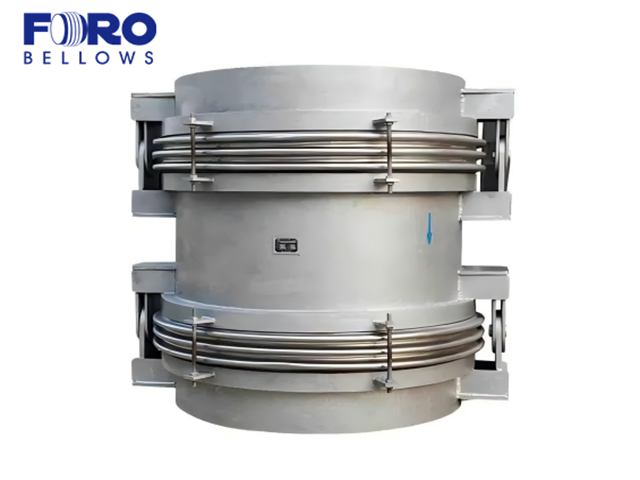

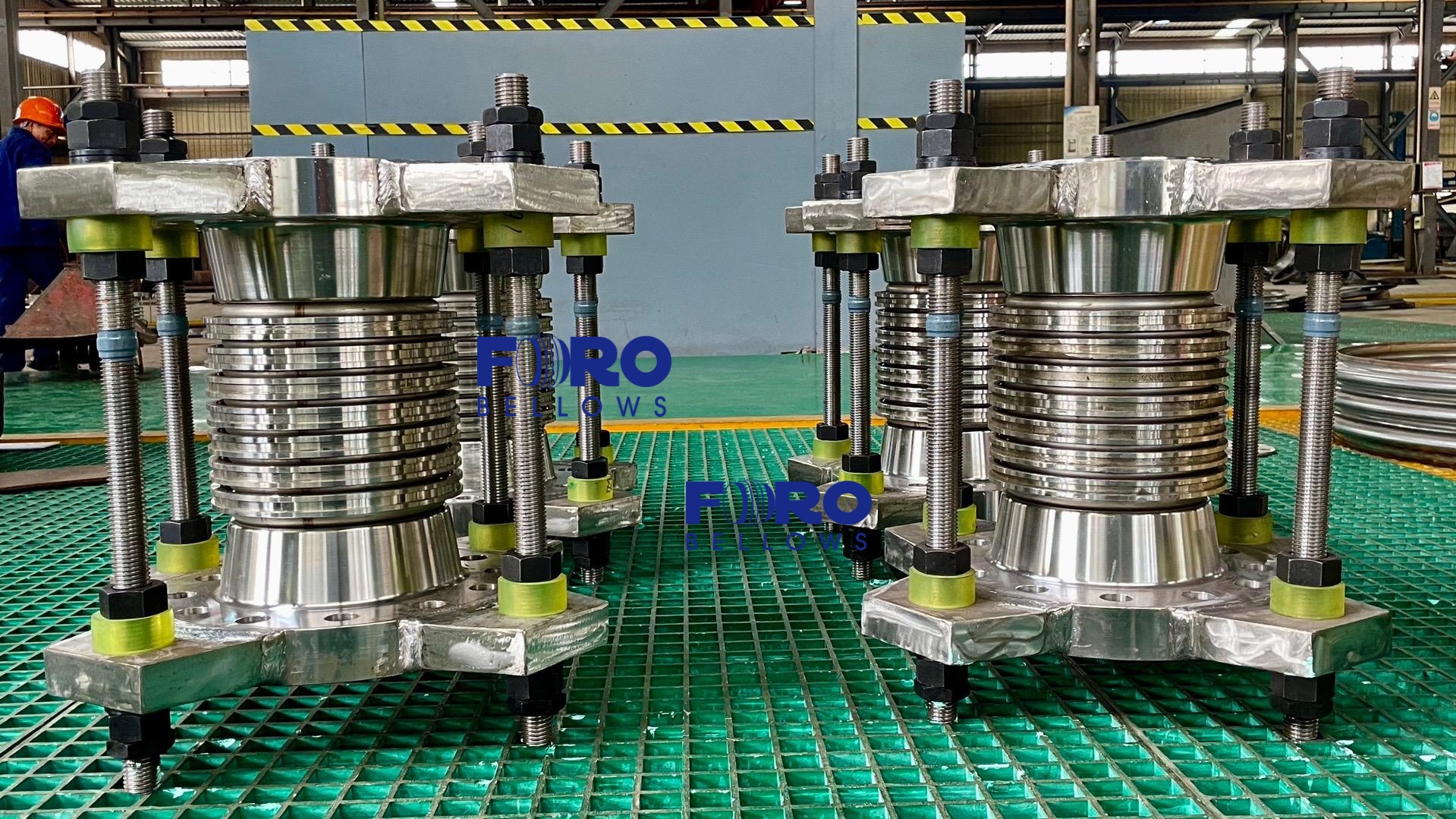

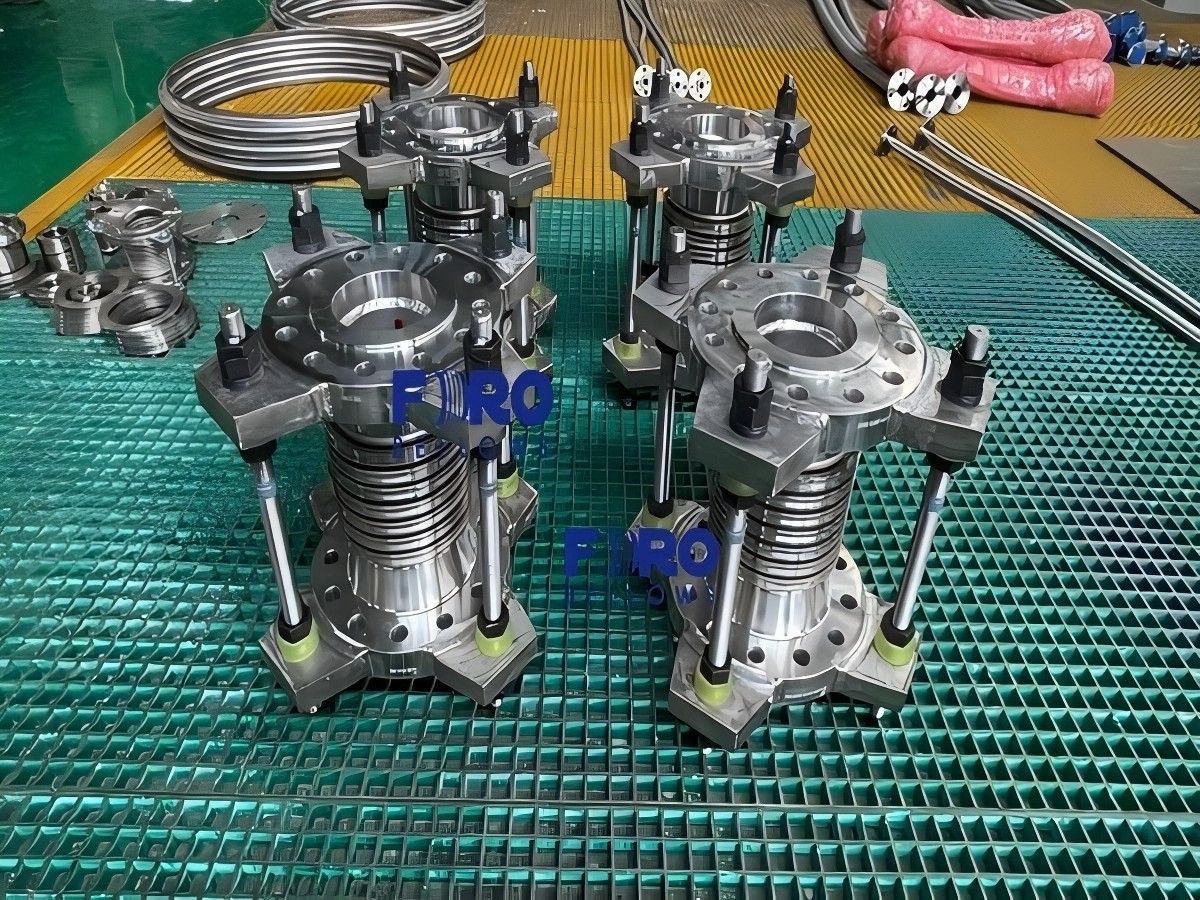

High Pressure Pipeline Expansion Joints Photo
