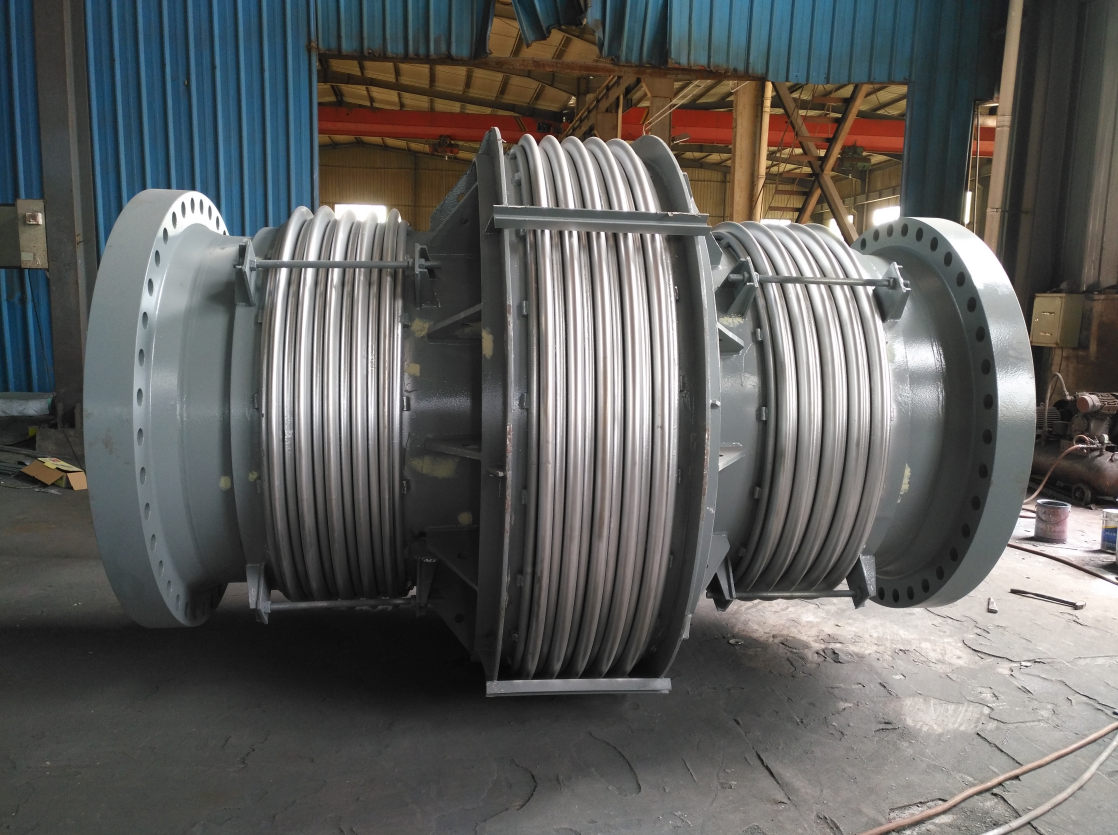

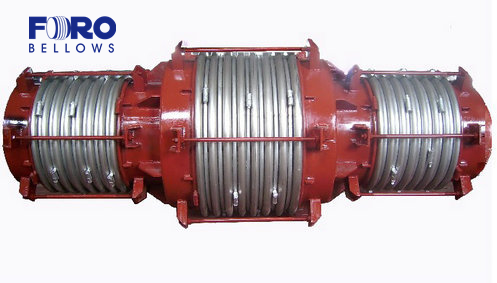

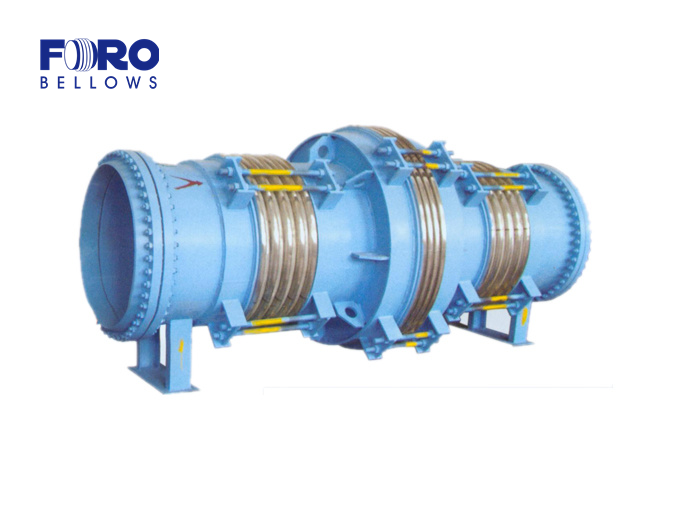

In-Line Pressure Balanced Pipe Expansion Joints

In-Line Pressure Balanced Pipe Expansion Joints Function

In-Line Pressure Balanced Pipe Expansion Joints is generally installed on the straight pipe section. It can absorb the axial displacement of the pipe system without causing the pipe support or the connected equipment to bear the pressure thrust. It is suitable for overhead straight pipe lines with large pipe diameters and high pressures that are not convenient for setting fixed supports.

In-Line Pressure Balanced Pipe Expansion Joints Introduction

It is a commonly used pipeline connection component used to connect pipes at different temperatures to solve the problem of thermal expansion and contraction caused by temperature changes in pipes.

The expansion joint adjusts the length of the expansion joint so that the pipe can expand and contract freely when the temperature changes, while maintaining the sealing and stability of the pipe, effectively preventing the pipe from twisting and deforming.

The main structure of the straight pipe pressure-balanced expansion joint includes components such as pipe body, flange, extension joint, pressure-balanced bellows, intermediate support and bracket. The extension joint consists of several pressure-balanced bellows and can be customized according to different applications.

The core of the expansion joint is the pressure-balanced bellows, which can adaptively absorb the elongation and contraction of the pipe caused by temperature changes while bearing the pipe pressure. When in use, you can flexibly choose materials with excellent quality, corrosion resistance, high temperature resistance and good sealing, such as stainless steel, copper, aluminum, etc., according to actual conditions.

In-Line Pressure Balanced Pipe Expansion Joints Application

In-Line Pressure Balanced Pipe Expansion Joints Function are suitable for various industrial pipeline systems, such as petroleum, chemical, electric power, water treatment, aerospace, underground pipelines, steam heating, water supply and drainage, etc. Its characteristics are reasonable structure, long service life, corrosion resistance, good sealing, high reliability and easy maintenance.

In-Line Pressure Balanced Pipe Expansion Joints Data Sheet
