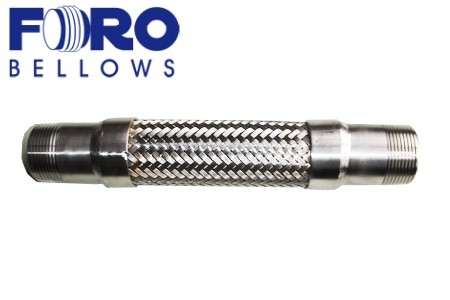

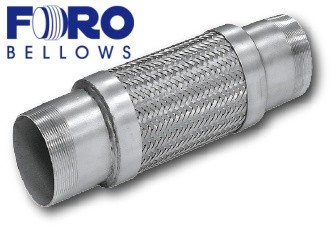

Flexible Connector With Screwed PT Ends

High frequency vibration can be greatly reduced, and general mechanical equipment vibration can be isolated through the shockproof joint

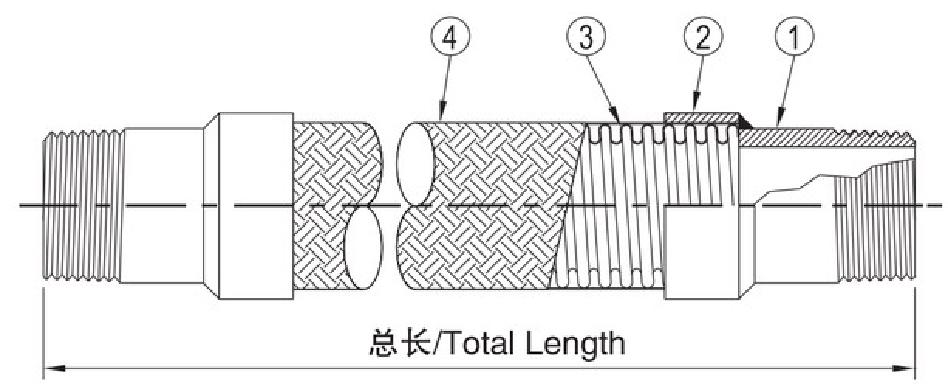

Flexible Connector With Screwed PT Ends drawing.png

Construction

FEATURES:

1.REDUCTION OF NOISE

High static pipe vibration noise will be reduced greatly.

2. VIBRATION ISOLATING

Vibration of typical mechanical machines and equipments can be isolated through the use of the Panew Flexible Connector.

3. FLEXIBLE CONSTRUCTION

Designed for simple maintanance,through routine cleaning,repairment and replacement.

4. COMPENSATE MISALIGNMENT

The stress due to the misalignment of the pipeline installation can be eliminated effectively throught the Panew flexible connector.

5. ABSORBTION OF THERMAL EXPANSION

By connecting the Panew flexible connector,lateral and angular movement will be greatly reduced thus protecting and maintaining

the pipes in your machines.

6. ALL STAINLESS STEEL CONSTRUCTION

Effective in conditions of extreme heat and pressure.

Single Braids Specification

N.D.	Total Length(L)		Hose Specification			Allowalble Movement Vibration Static		Working pressure	Weight per Unit
			O.D.	Bellows Type	Braids Type
mm inch	mm	inch	mm	H/A	S/D	mm	mm	kg/cm²	kg/Set
15 1/2	250	10	18.5	H/(A)	S	27.7	46.8	60.0	0.16
20 3/4	250	10	25.6	H/(A)	S	24.6	44.2	40.5	0.27
25 1	250	10	32.5	H/(A)	S	21.4	40.4	36.3	0.34
32 1 1/4	250	10	41.7	H/(A)	S	15.8	23.1	32.2	0.50
40 1 1/2	300	12	55.0	A	S	25.5	38.7	31.9	0.72
50 2	300	12	68.2	A	S	18.6	26.8	29.4	1.11
65 2 1/2	350	14	84.1	A	S	30.0	42.6	24.8	1.60
80 3	350	14	97.9	A	S	19.8	27.4	19.2	2.10

Double Braids Specification

N.D.		Total Length(L)		Hose Specification			Allowalble Movement Vibration Static		Working pressure		Weight per Unit
				O.D.	Bellows Type	Braids Type
mm	inch	mm	inch	mm	H/A	S/D	mm	mm	kg/cm2	kg/Set
25	1	250	10	32.5	H/(A)	D	16.5	35.3	58.1	0.4
32	1 1/4	250	10	41.7	H/(A)	D	12.0	17.8	51.5	0.7
40	1 1/2	300	12	55.0	A	D	19.7	30.0	51.0	1.0
50	2	300	12	68.2	A	D	14.2	20.7	47.1	1.3
65	2 1/2	350	14	84.1	A	D	23.1	32.8	39.8	1.8
80	3	350	14	97.9	A	D	15.2	20.9	30.7	2.3

# The working pressure tabulated above is the based on the room temperature(about 25℃)and minimum burst pressure is 4 times the working pressure.

# The size,working pressure,total length,and movement abulated above is the standardspeiiation.We can also deliver products against your requests.
