Sprinkler Hose For Commercial System
Rated working pressure:12.3 kg/cm²,175 psi
Hydrostatic pressure:49.3 kg/cm²,700 psi
Burst pressure:98.5 kg/cm²1400 psi
●Friction Loss Data:
| Product total length | Flow Rate:115l/min(C=100) | ||||
| Total Length | EQL/中1” - sch40 | Bending number | |||
mm | ft | m | ft | N | |
| 900 3.0 | 8.0 | 26.3 | 1 | ||
| 1200 | 4.0 | 9.6 | 31.6 | 3 | |
| 1500 | 5.0 | 10.8 | 35.3 | 4 | |
| 1800 | 6.0 | 11.9 | 39.1 | 4 | |
| ※N:No . of 90°bend . | |||||

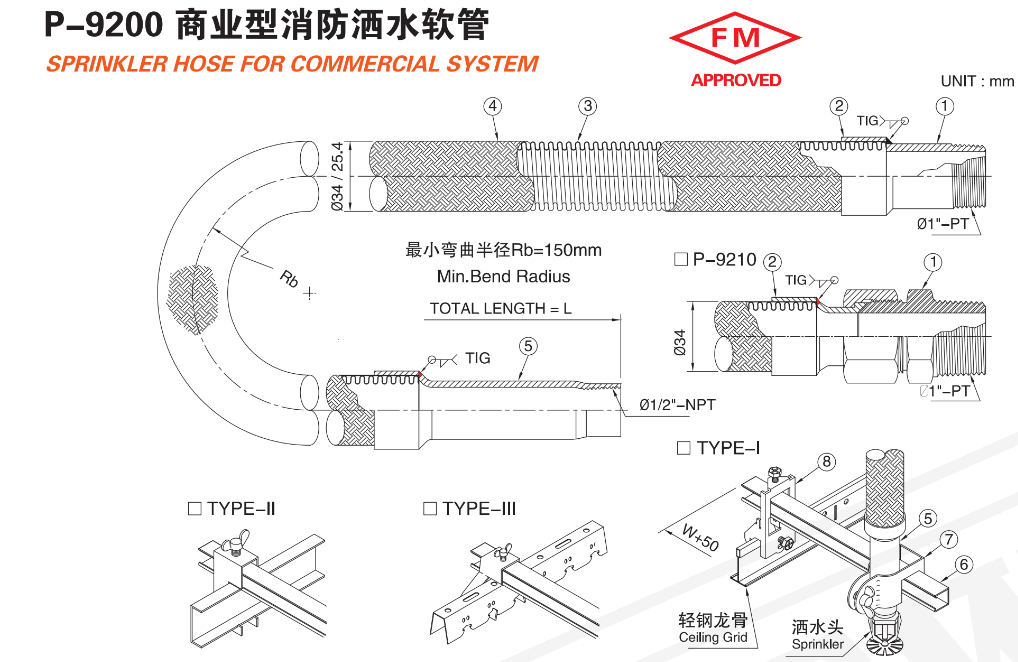

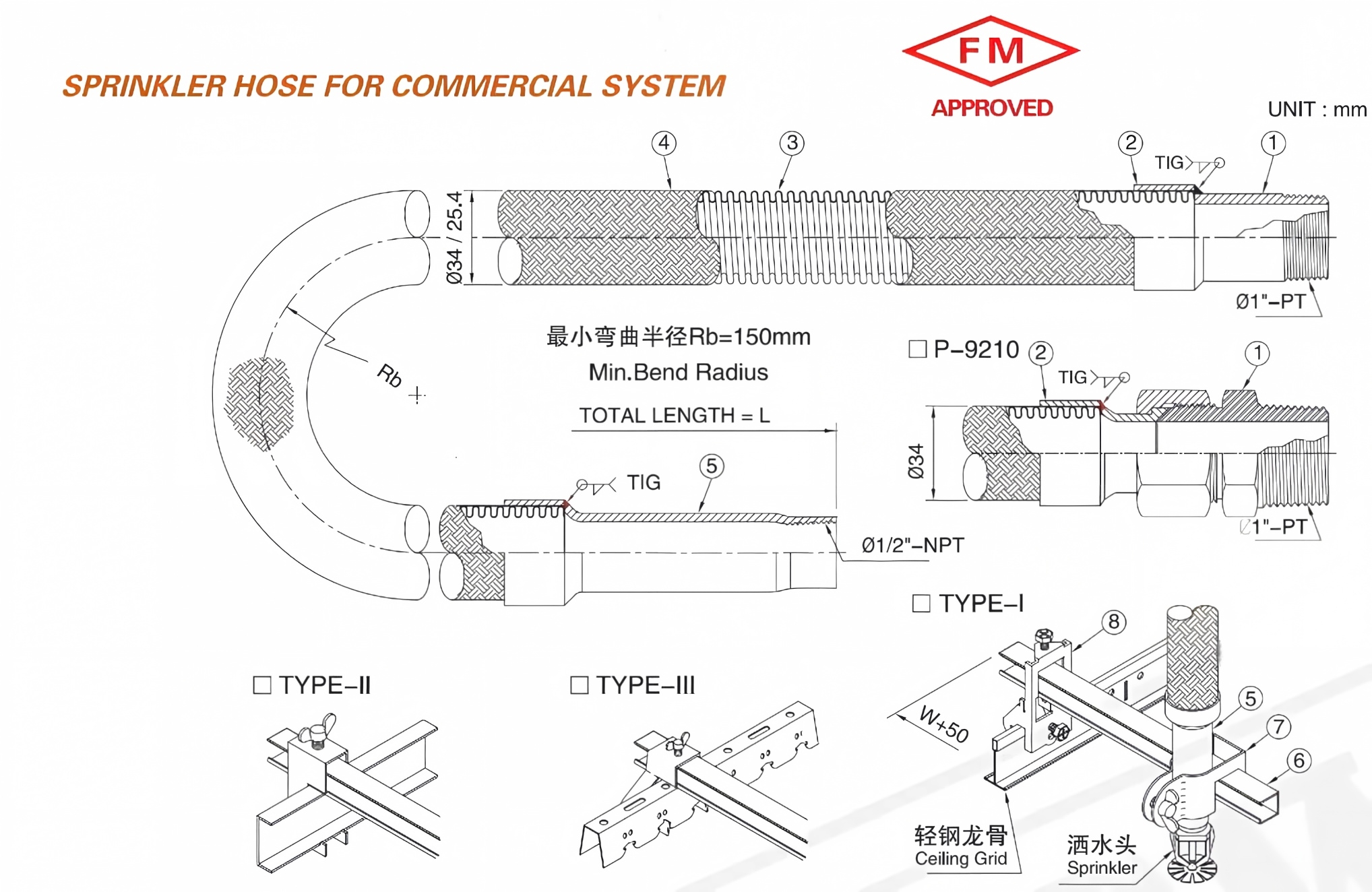

Construction:
| Item | Fitting | material | ||
| 1 | Round Nipple | SUS-304 | ||
| Union | SS-400 | |||
| 2 | Collar | SUS-304 | ||
| 3 | Bellows | SUS-304 | ||
| 4 | Wire Braids | SUS-304 | ||
| 5 | Adapter | SUS-304 | ||

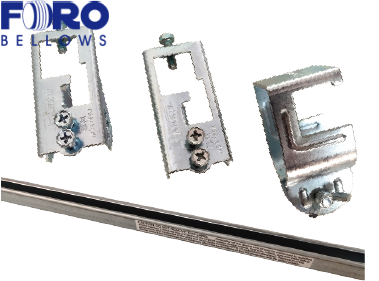

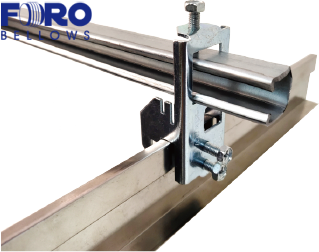

| 6 | C-Beam | SPCC(Galv.） | ||
| 7 | Adapter Holder | SPCC(Galv.) | ||
| 8 | Pipe Clamp | SPCC(Galv.) | ||
Features of the Sprinkler Hose.
1. Pressure capabilities:
Rated working pressure:12.3 kg/cm²,175 psi
Hydrostatic pressure:49.3 kg/cm²,700 psi
Burst pressure:98.5 kg/cm²1400 psi
2. Advantages of high flexibility
a. Flexible to adjust the sprinklers to installation conditions.
b.Prevent the pipe cracks and ceiling deformations during seismic sway.
c.Simple installation.Reduce the laborious costs effectively.
3. Installation with security
a. Construction with screws.Provide builders with security.
b.One piece style structure.Pre-assembled and tested for pressure leak in the factory 100%before delivery
