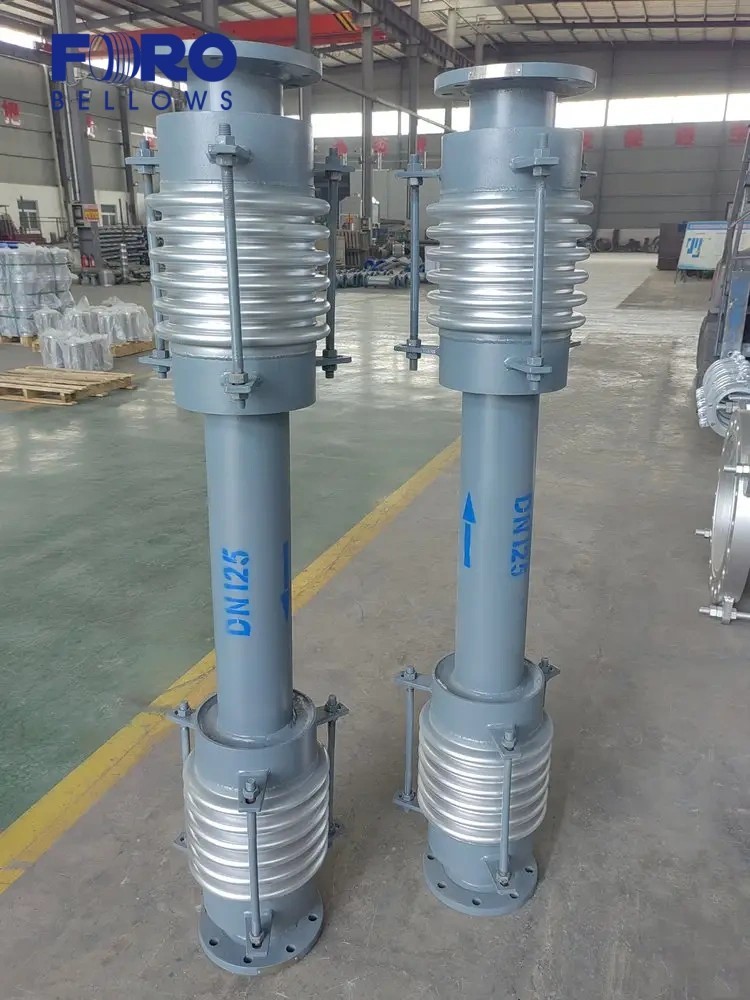

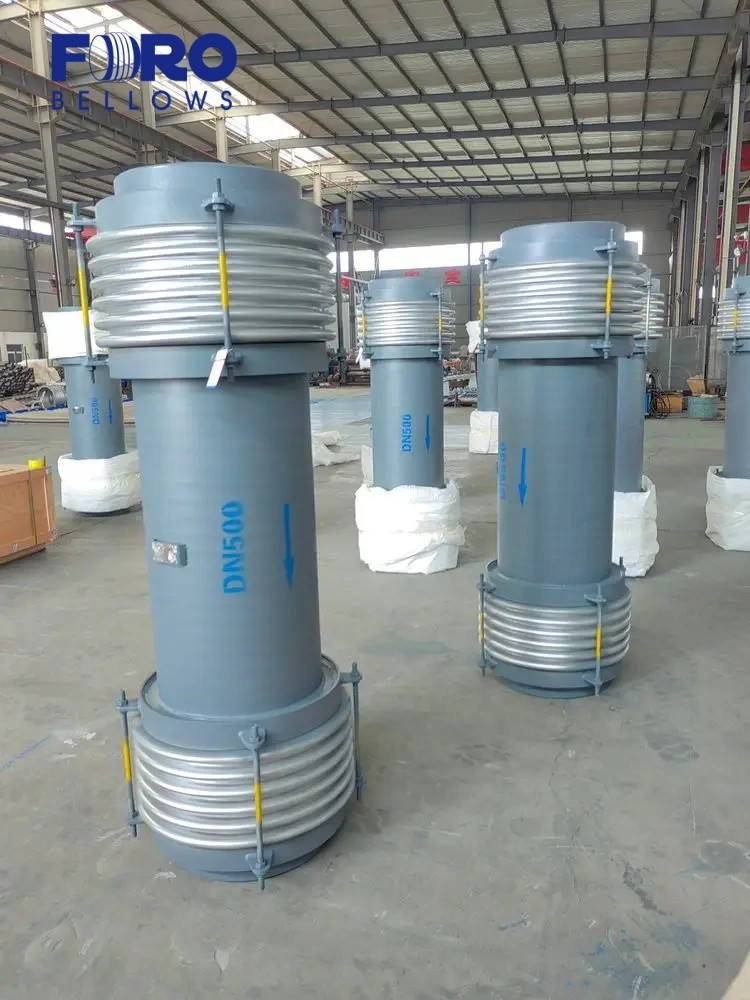

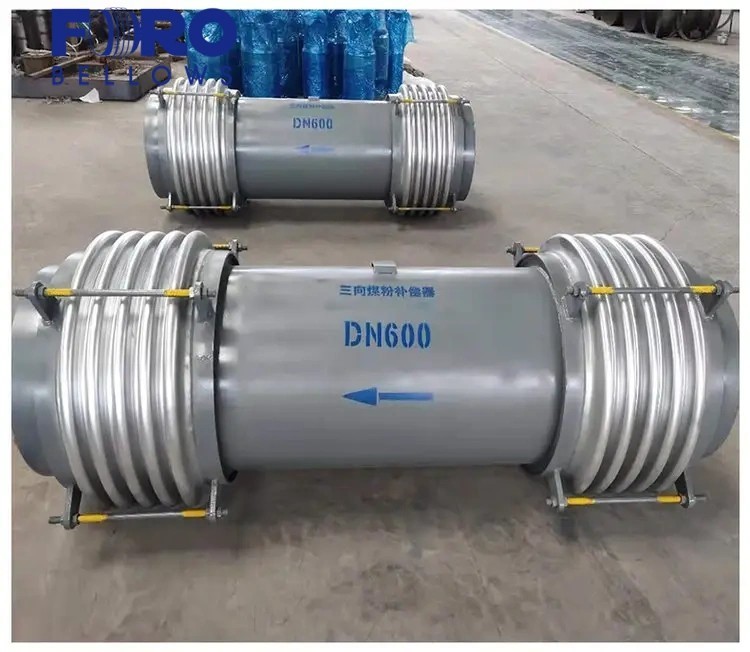

Three-dimensional Expansion Joints for for pulverized coal pipeline

Introduction of  the Three-dimensional Expansion Joints

The three-dimensional expansion joints of coal powder pipeline is a compensator specially designed for coal powder pipeline. The corrugated pipe of the pipeline compensator is made of 1Cr18Ni9Ti or SUS304. The pipeline compensator adopts a multi-layer one-time hydraulic forming process, which can compensate for the synthetic displacement in the axial, angular, lateral and all directions. The pipeline compensator has many advantages such as high efficiency, large compensation amount, good product performance, long service life, etc. Therefore, this coal powder pipeline compensator is highly praised by users.

 The high-speed friction of coal powder and the unreasonable product structure are the main reasons for the premature damage of the pipeline compensator. The pipeline compensator guide tube adopts thickened steel and different structural designs, which has superior performance.

 The three-dimensional expansion joints  of coal powder pipeline is suitable for coal powder, hot air gas-solid two-phase fluid. The pipeline compensator has a flow rate of 15-30m/s, an operating temperature of 60℃, and a wind pressure of ≤500mmH20 for primary air, tertiary air, and tertiary air pipeline displacement compensation in any direction.

Scope of application

Applicable to coal powder, hot air gas-solid two-phase fluid, flow rate 15~30m/s, working temperature 60℃~450℃, wind pressure f500mmH20, primary air, secondary

air, tertiary air pipeline displacement compensation in any direction.

Applicable to pipeline systems with thermal displacement requirements for gas-solid two-phase fluids with pressure £0.25MPa and other solid dust and particles.

No powder leakage, no powder accumulation, small displacement stiffness; can absorb displacement in any direction, good performance, boiler and pipe system can expand freely; easy installation and maintenance, simple hanger, long service life, low comprehensive investment. Widely used in 100~600MW generator sets, fundamentally solves the problem of coal powder leakage and ensures the normal operation of equipment.

Performance characteristics

No powder leakage, no powder accumulation, small displacement stiffness; can absorb displacement in any direction, good performance, boiler and pipe system can expand freely; easy installation and maintenance, simple hanger

Long service life, low comprehensive investment. Widely used in 100~600MW generator sets, fundamentally solves the problem of coal powder leakage and ensures the normal operation of equipment.

Main specifications

Nominal diameter: DN100-DN2000

Product material: 304, 316L and other stainless steel

Working pressure: 0.25MPa

Connection method: flange, welding connection or processing on demand

Product model: MSW

Scope of application: used for pulverized coal pipelines, power plants, chemical industry, metallurgy, petroleum, fire protection systems, etc.

Material:The bellows is made of 1Cr18Ni9Ti, and the connecting pipe is made of low-carbon alloy steel, which has good connection performance.
